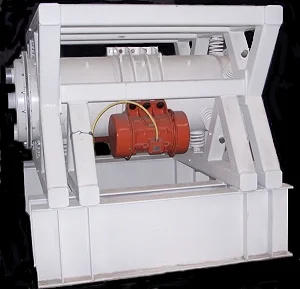

VKE 3080 Model Production Mill

VKE Model 3080

VKE 3080 Mill

VKE 3080 Mill

Specifications

  • Dimensions: 8'W x 6.5'H x 10'L
  • Weight:* 8,000 lbs.
  • Motor: Two (2) 9 hp.

* without grinding material

The 3080 production mill is capable of a 2 to 3 tons per hour feed rate.  It has two 9 hp motors with 42,000 lbs. max. force.

The VKE 3080 mill has the same liner and grinding media options as the other mills.  The real advantage is energy efficiency, low maintenance and simplicity in design.  Anyone skilled in basic fabrication can maintain them.

The only moving part is the motor and it can be changed in less than thirty minutes.  The wear items are the grinding media and wear liners, but due

to the action and design of the mills, they only wear according to the abrasiveness of the grinding material.

All VKE mills are capable of wet or dry grinding and continuous classified production.  The VKE 3080 mill is capable of grinding to nano micron particle sizes.

Price List (subject to change)

MODEL 3080 MILL DRY SYSTEM

  • VKE 3080 single mill: Call
  • VKE 3080 dual mills: Call
  • 6" SS sager variable rate feeder: ** Call
  • Classifier with adj particle size: $30,000.00
  • Blower and piping for pneumatic transport system 30 hp.: $7,635.00
  • Rotary valves for classifier & product collector:** Call
  • Product collector bottom load bags, custom designed with legs to allow product discharge to bulk bag: $25,000.00
  • Hard steel balls, single mill, various sizes (3,090 lbs.): Call
  • Alloy steel grinding rods, single mill (4,000 lbs.): $9,000.00
  • Hard steel balls, dual mill, various sizes (6,180 lbs.): Call
  • Alloy steel grinding rods, dual mill (6,180 lbs.): Call
  • Ceramic cylinders or balls: Call
  • Electric control for mill only: $7,500.00

MODEL 3080 MILL WET SYSTEM

  • VKE 3080 single mill: Call
  • VKE 3080 dual mills: Call
  • 800 gal. SS mix tank with 40 hp. standard motor: Call
  • 13,500 Pump, Gould centrifugal 27gpm at 40' head, 2 hp.: $7,000.00
  • Pump, progressive cavity variable speed, 2 hp.: $4,800.00
  • Pipe, fittings, and flow meter: $3,200.00

** Price varies depending on options selected. Call for an exact price quote.
